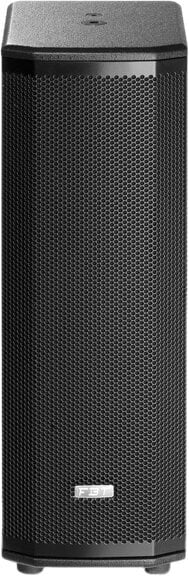

Versatile two-way loudspeaker with bass reflex design from VENTIS series that has been designed to meet the highest standards in both performance and aesthetic appeal. It is equipped with 6.5” long excursion woofer with 1.5” voice coil and 1” B&C HF compression driver with 1.4“ voice coil. They are powered by a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H/AB design. Finally, on-board DSP is both user friendly and powerful and offers a total of 6 pre-optimised settings (Original/Live, Vocal, DJ, Touring, Loudness, Warm), plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 ms. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance. The control panel features balanced XLR/Jack input, XLR LINK OUT, two Volume controls and RCA stereo input. The speaker’s enclosure is made of 12mm thick birch plywood with scratch resistant coating, internal bracing and integrated handle. It also has a 35mm top-hat socket and a wall bracket mount thread. Six M10 suspension points are included as standard. Frequency response: 70 Hz-20 kHz. Maximum SPL: 131 dB. Dimensions: 190 x 560 x 260 mm. Weight: 12.3 kg.
